How Are Steel Balls Made ? Steel Ball Manufacturing Process

From the precision bearings in your car's transmission to the simple click of a ballpoint pen, steel balls are the silent heroes of modern engineering. These spherical components are essential for reducing friction and supporting radial and axial loads in countless mechanical systems. Understanding the complex journey from a raw wire coil to a mirror-polished precision sphere reveals a fascinating intersection of metallurgy and high-precision machining.

The steel ball manufacturing process is a multi-stage engineering sequence that involves cold heading raw wire into rough spheres, followed by flashing, heat treatment, precision grinding, and lapping to achieve exact tolerances and surface finishes. This rigorous process ensures that the Carbon Steel Ball and other alloy spheres meet the strict hardness and sphericity requirements demanded by global industries.

In this comprehensive guide, we will explore the intricate steps involved in producing high-quality steel balls. We will cover the selection of raw materials, the mechanical forming processes, the critical heat treatment phases, and the final quality control measures that define industry standards.

Article Summary and Roadmap

1. Why Are Steel Balls So Important?

Steel balls are vital components because they provide the primary means of converting sliding friction into rolling friction, which significantly enhances the efficiency and lifespan of mechanical assemblies. Without the precision of a Carbon Steel Ball, the modern world of transport, energy, and manufacturing would essentially grind to a halt due to heat and wear.

The importance of these components cannot be overstated. In industrial machinery, steel balls allow for the smooth rotation of shafts and gears. By minimizing the contact area between moving parts, they reduce energy consumption and prevent the premature failure of expensive equipment. Whether it is a heavy-duty conveyor belt or a high-speed electric motor, the reliability of the system depends entirely on the roundness and durability of the balls within the bearings.

Furthermore, steel balls serve diverse functions beyond just bearings. They are used as check valves in hydraulic systems to control fluid flow, as grinding media in mining to crush ores, and even in domestic items like drawer slides and casters. The versatility of the Carbon Steel Ball makes it a fundamental building block of hardware.

The economic impact is also significant. High-quality steel balls reduce maintenance costs and downtime for businesses. By selecting the right grade and material, engineers can optimize machines for specific environments, such as high-heat or corrosive settings, ensuring that the global supply chain remains operational and efficient.

2. Materials Used in Steel Ball Manufacturing

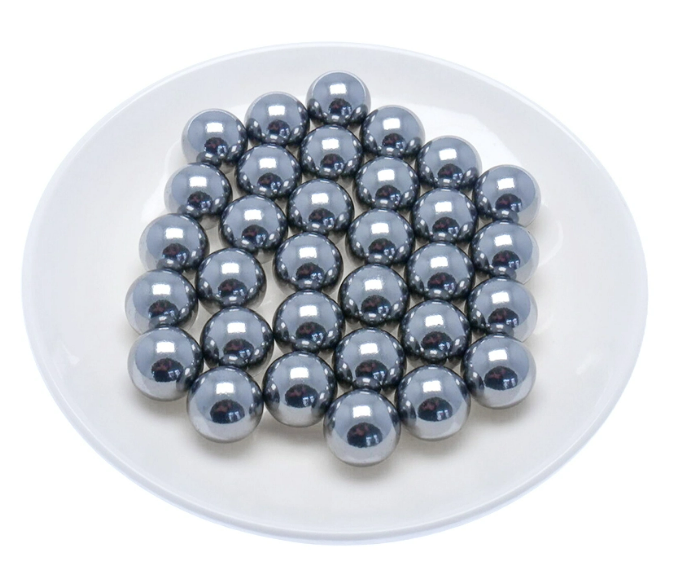

The selection of material depends on the intended application, with the Carbon Steel Ball being one of the most common choices due to its balance of cost-effectiveness and durability. Manufacturers choose between low carbon, high carbon, stainless steel, and chrome steel based on the required hardness, corrosion resistance, and load-bearing capacity.

When we discuss the Carbon Steel Ball, we generally categorize them into low carbon and high carbon variants. Low carbon steel balls are often used in applications where high hardness is not the primary concern, such as furniture casters or toys. High carbon steel balls, however, can be case-hardened to provide a tough outer shell while maintaining a ductile core, making them excellent for moderate load applications.

Beyond carbon steel, chrome steel (often AISI 52100) is the industry standard for high-precision bearings due to its exceptional through-hardness and wear resistance. Stainless steel balls (such as 304, 316, or 440C) are preferred in environments where moisture or chemicals would cause a standard Carbon Steel Ball to rust.

3. Step-by-Step Steel Ball Manufacturing Process

The steel ball manufacturing process is a highly specialized sequence of cold forming, thermal processing, and abrasive finishing designed to transform raw metal into a perfect sphere. Each step is critical to ensure that the final Carbon Steel Ball adheres to the microscopic tolerances required by international engineering standards.

3.1 Step 1: Cutting Steel Slugs

The process begins with cutting raw metal wire into small, uniform pieces known as slugs, which contain the exact volume of material needed for a single ball. This ensures that there is minimal waste and that each Carbon Steel Ball starts its journey with the correct mass.

Raw wire is fed from massive coils into a cold-heading machine. A high-speed shearing mechanism cuts the wire at high frequencies. Precision is key here; if the slug is too small, the ball will not reach its required diameter, and if it is too large, it will cause excessive wear on the forming dies.

3.2 Step 2: Forming the Raw Ball

After cutting, the slugs are compressed between two hemispherical dies in a process called cold heading to create a rough spherical shape. At this stage, the Carbon Steel Ball begins to take form, though it still possesses a "ring" or "flash" around its equator where the two dies met.

The cold heading machine operates at immense pressure, forcing the metal to flow into the cavity of the dies. This mechanical working of the metal actually improves the grain structure of the steel, making the ball stronger than if it had been machined from a solid block.

3.3 Step 3: Flash Removal (Flashing Process)

Flashing is a heavy-duty grinding process where the rough balls are rolled between two heavy cast-iron plates to remove the "pole" and "ring" left over from the heading stage. This step brings the Carbon Steel Ball closer to a truly spherical shape and prepares it for heat treatment.

The plates feature concentric grooves that guide the balls as they tumble and grind against one another. This "rough grinding" removes the excess flash and starts to homogenize the size of the balls in a specific batch.

3.4 Step 4: Soft Grinding (Optional Step)

Soft grinding uses abrasive wheels to further refine the diameter and roundness of the balls before they are hardened by heat. This step is often used for high-precision Carbon Steel Ball production to ensure that the material removal after hardening is kept to a minimum.

By perfecting the shape while the steel is still "soft," the manufacturer saves time and reduces the wear on more expensive finishing equipment used later in the process. It is a critical efficiency step in mass production.

3.5 Step 5: Heat Treating for Hardness and Strength

In this phase, the balls are heated to extreme temperatures and then rapidly cooled (quenched) to transform the internal structure of the steel into a much harder state. This is where a Carbon Steel Ball gains the structural integrity necessary to withstand heavy loads without deforming.

The balls are placed in industrial furnaces, often under a controlled atmosphere to prevent oxidation. After reaching the critical temperature, they are quenched in oil or water. Following quenching, the balls are "tempered"—reheated to a lower temperature—to reduce brittleness and ensure long-term durability.

3.6 Step 6: Descaling (Removing Oxide Layer)

Descaling is a cleaning process that removes the carbon buildup and oxide scale that forms on the surface of the ball during the heat treatment process. This ensures that the Carbon Steel Ball has a clean surface for the precision grinding steps that follow.

Usually, chemical baths or mechanical tumbling are used to strip away the darkened outer layer. Without descaling, the oxide flakes could contaminate the grinding fluids and damage the precision machinery.

3.7 Step 7: Precision Grinding of Hardened Steel Balls

Hardened balls are ground between extremely hard abrasive wheels to bring them within a few microns of their final target diameter. This is a slow, meticulous process that gives the Carbon Steel Ball its essential dimensional accuracy.

The balls circulate through the grinding machine multiple times. Modern sensors monitor the progress, ensuring that the batch remains uniform. Because the steel is now hardened, this process requires specialized coolants to prevent thermal damage to the metal's molecular structure.

3.8 Step 8: Lapping – Superfinishing the Surface

Lapping is the final mechanical process where the balls are polished using a fine abrasive paste to achieve a mirror-like finish and incredible sphericity. This is what allows a high-quality Carbon Steel Ball to operate with almost zero noise or vibration in a bearing.

During lapping, the tolerances are refined to levels often measured in millionths of an inch. The surface finish becomes so smooth that friction is nearly eliminated. This step distinguishes a standard industrial ball from a high-precision grade component.

3.9 Step 9: Washing, Inspection, and Sizing

The finished balls undergo a rigorous cleaning process followed by automated and manual inspections to ensure they are free of defects and grouped by exact size. Every Carbon Steel Ball is checked for surface cracks, pits, and diameter variations.

Sophisticated optical sorting machines can inspect thousands of balls per minute, identifying microscopic flaws that the human eye would miss. The balls are then "binned" or "sized" into lots where the diameter variation is almost non-existent.

3.10 Steel Ball Grades and Tolerances

Steel ball "Grade" refers to a specific combination of dimensional, form, and surface roughness tolerances, with lower grade numbers indicating higher precision. A Grade 10 Carbon Steel Ball is significantly more precise than a Grade 1000 ball.

The grading system allows engineers to select the most cost-effective ball for their needs. While a bicycle might only require Grade 100 or 200, a high-speed aerospace turbine might require Grade 3 or 5.

4. Applicable International Standards for Steel Balls

International standards provide a universal language for quality, ensuring that a Carbon Steel Ball manufactured in one country will perform identically to one made elsewhere. These standards define the allowable deviations in diameter, sphericity, and surface roughness.

The most commonly cited standards include:

1. ISO 3290: The primary international standard for rolling element bearings and balls.

2. ANSI/ABMA Std. 10: The American standard that defines grades and requirements for metal balls.

3. DIN 5401: The German industrial standard, often used across Europe for high-precision engineering.

Following these standards is not optional for professional manufacturers. It guarantees that the Carbon Steel Ball will fit perfectly into standardized bearing races and perform predictably under load.

5. Quality Control in Every Stage

Quality control is the backbone of the manufacturing process, involving metallurgical testing, hardness checks, and precision measurement at every single production gate. This ensures that any batch of Carbon Steel Ball products maintains total consistency.

1. Incoming Material Inspection: Testing the wire for chemical composition and tensile strength.

2. In-Process Monitoring: Checking the dimensions of the balls after heading and flashing.

3. Hardness Testing: Using Rockwell scales to ensure the heat treatment was successful.

4. Final Visual Inspection: Using automated eddy-current or optical systems to detect surface flaws.

By maintaining strict QC protocols, manufacturers prevent "rogue" balls from entering a bearing assembly, which could otherwise lead to catastrophic mechanical failure.

6. Modern Innovations in Steel Ball Manufacturing

Innovation in the industry today focuses on increasing automation, reducing environmental impact, and developing new alloys that exceed the performance of the traditional Carbon Steel Ball. Modern factories are moving toward "Industry 4.0" integration.

Artificial Intelligence is now being used to predict when grinding plates need replacement, and closed-loop filtration systems are making the lapping process more environmentally friendly. Additionally, there is a growing trend toward ceramic-steel hybrids, though the Carbon Steel Ball remains the king of cost-efficiency and versatility.

The push for electrification in the automotive industry is also driving demand for even higher precision balls. Electric motors run at much higher RPMs than internal combustion engines, requiring steel balls with near-perfect sphericity to minimize noise, vibration, and harshness (NVH).
