Grinding media plays a crucial role in the milling and material reduction process across a wide range of industries including mining, cement, paint production, and ceramics. While the material composition of grinding media is important, selecting the right size and shape of grinding media is equally essential for optimal grinding efficiency, energy consumption, and final product quality. This article will explore how to make the best choice when it comes to grinding media dimensions, and what factors should guide your selection.
Understanding the Role of Grinding Media in Milling Efficiency
Grinding media refers to the particles—usually spheres or cylinders—used in ball mills, bead mills, or other grinding equipment to reduce material size through mechanical force. When media is rotated or stirred within a mill, it grinds down larger particles through impact and attrition.
Choosing the correct grinding media directly impacts:
Particle size distribution of the final product
Energy efficiency of the milling process
Contamination levels in the milled product
Operational costs due to media wear and replacement
The wrong choice can lead to insufficient grinding, excessive heat generation, higher wear rates, and inconsistent end-product properties. That’s why understanding the proper size and shape for your application is critical.
Factors to Consider When Choosing Grinding Media Size
1. Mill Type and Design
Different types of mills operate at different speeds and involve different mechanical actions:
Ball mills rely heavily on impact force. Larger media is often more effective here.
Stirred mills utilize shearing force, thus smaller media improves surface contact.
The size of the mill also influences media selection. Larger mills accommodate larger grinding media, while small-scale operations require fine media for consistency.
2. Material Being Processed
The hardness, fragility, and target particle size of the raw material all dictate the appropriate media size. Hard materials typically need larger, heavier grinding media for efficient crushing, while softer materials benefit from smaller media that avoid excessive damage.
| Material Type | Suggested Media Size (mm) |
| Hard minerals | 10 – 30 mm |
| Medium hardness | 5 – 10 mm |
| Soft/organic | 0.1 – 5 mm |
3. Desired Particle Size Output
Finer particle size distributions require smaller grinding media. Larger particles offer higher impact energy but may not achieve the ultrafine dispersions needed in industries like pharmaceuticals or pigment manufacturing.
The general rule is:
"Smaller media = finer grinding, but longer processing times."
4. Media Load and Filling Ratio
The percentage of media volume relative to the mill’s capacity affects energy distribution. Larger media takes up more space, reducing the contact points. Proper size ensures maximum grinding surface area without crowding the system.
Choosing the Right Shape: Spheres, Cylinders, or Custom Forms?
Different Shapes of Grinding Media
Grinding media comes in various shapes, each serving a unique purpose:

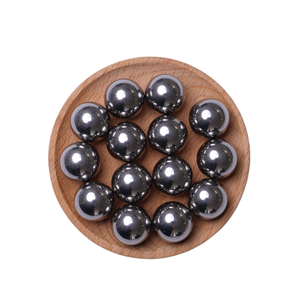

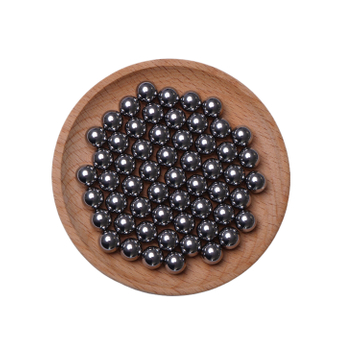

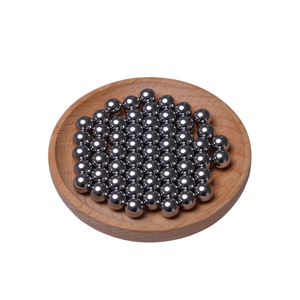

Spherical (balls): Provide even grinding and are suitable for high-speed milling.
Cylindrical (rods or pins): Offer improved contact surface area, great for coarse grinding.
Satellite/diabolo shapes: Used in high-intensity applications to reduce wear.
Each shape presents its own strengths and limitations depending on your process parameters.
Benefits and Drawbacks of Common Media Shapes
| Shape | Advantages | Limitations |
| Spheres | Uniform wear, efficient in impact | May roll without grinding in low-energy |
| Cylinders | High surface area, better shearing | May break down unevenly |
| Diabolo | Aggressive grinding, compact | Higher cost, non-standard |
Matching Shape to Your Application
For applications like dispersion in ink or coatings, spheres are often ideal due to their smooth rotation. In ceramic milling or mineral processing, cylindrical or mixed media may be better suited for breaking down solid particles under high stress.
Common FAQs on Grinding Media Selection
Q1: Does using larger media always increase grinding speed?
Not necessarily. While larger media has higher impact energy, it can overshoot fine grinding requirements and produce a coarser output. It also reduces the number of contact points in the mill.
Q2: Can I mix different sizes or shapes of grinding media?
Yes. In many operations, mixing sizes or shapes improves grinding efficiency by combining impact and shear forces. However, careful monitoring is needed to avoid segregation or uneven wear.
Q3: How often should I replace grinding media?
Replacement frequency depends on:
Media wear rate (affected by shape and hardness)
Product purity requirements
Visual signs of degradation
Some media types can be reused multiple times, while others need regular replacement to ensure consistent performance.
Q4: What happens if the media is too small?
If the grinding media is too small:
Always align media size with the energy input of the mill and particle size target.
Expert Recommendations for Optimized Media Selection
Aligning Media Size With Milling Goals
Always start by identifying your target output parameters—whether it’s particle size, viscosity, or dispersion quality. Then work backwards to select a media size that delivers the energy and contact needed.
Consider Trial Runs and Testing
Before scaling up production, pilot testing different media configurations helps identify the best combination. Many companies conduct grinding media evaluations using test mills to fine-tune size, shape, and volume ratios.
Regular Monitoring and Adjustment
Even the right media will perform poorly if not maintained. Periodic monitoring, adjusting the fill level, and checking for broken media will ensure your grinding process remains efficient over time.
Conclusion
In summary, selecting the correct grinding media size and shape is a science rooted in material characteristics, mill design, energy input, and product requirements. Rather than adopting a one-size-fits-all approach, evaluating all variables systematically yields the best performance outcomes.
By choosing the appropriate media geometry and dimensions, manufacturers can significantly boost productivity, reduce wear costs, and ensure consistent product quality. Whether you're processing fine pigments or crushing minerals, a well-informed grinding media choice is key to unlocking better milling results.
